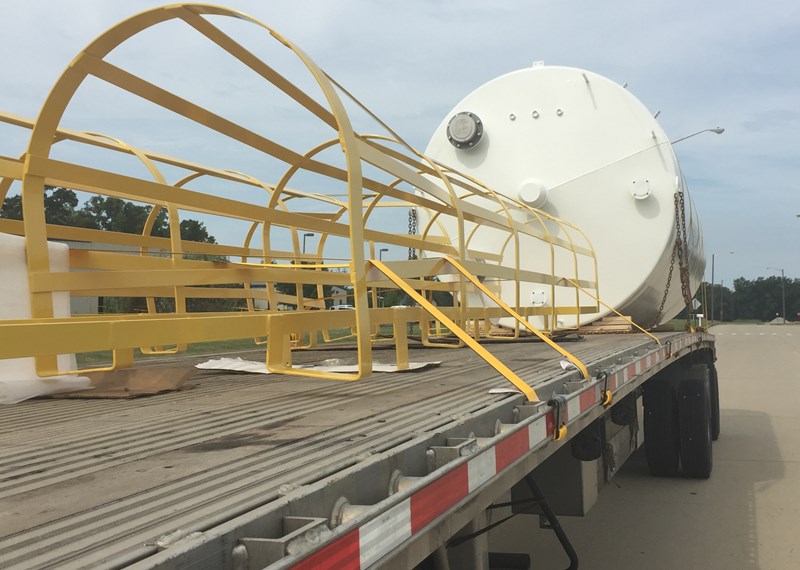

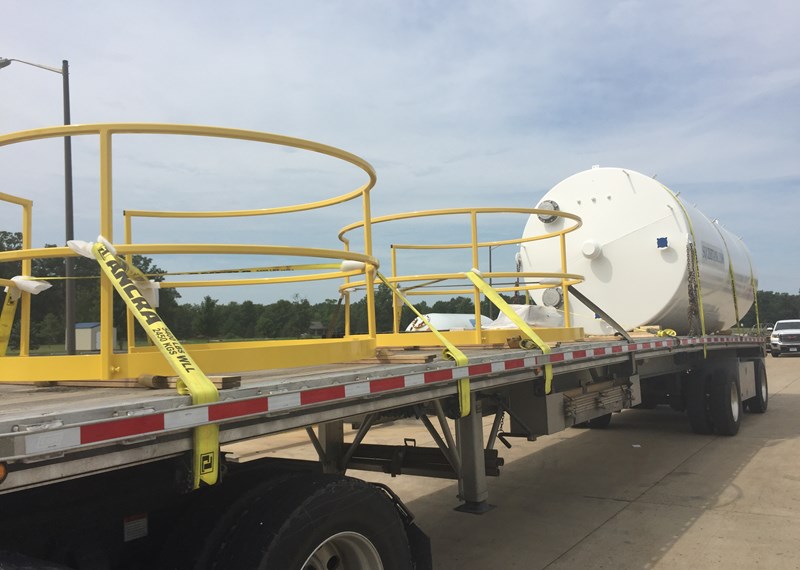

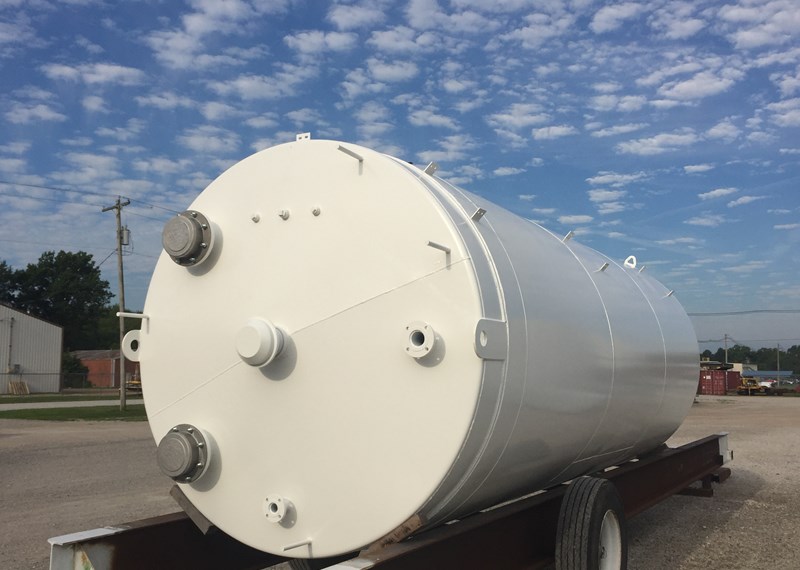

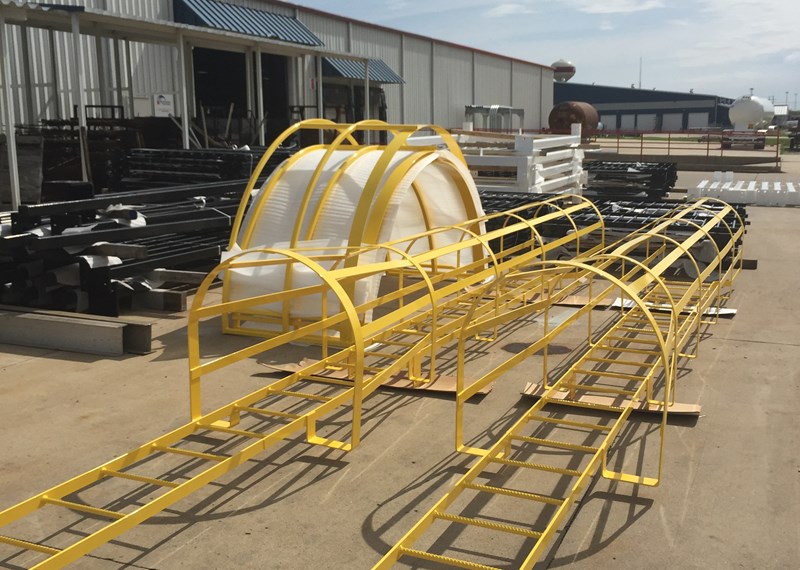

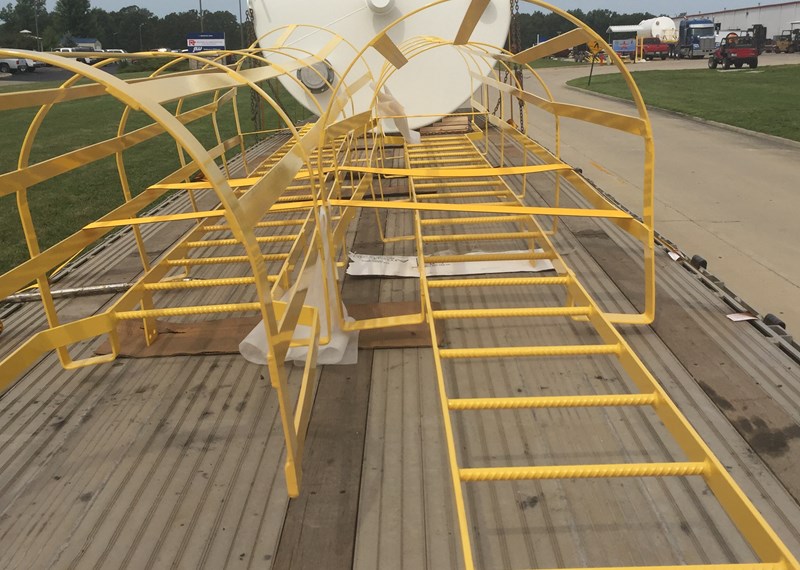

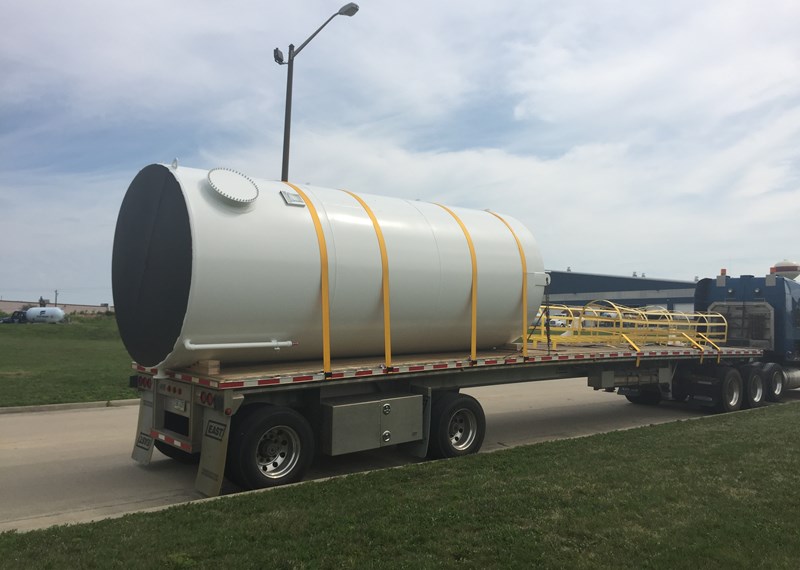

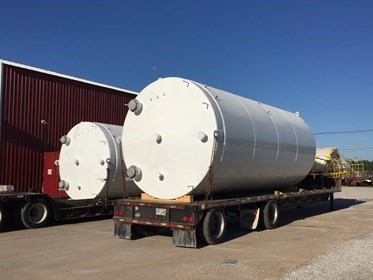

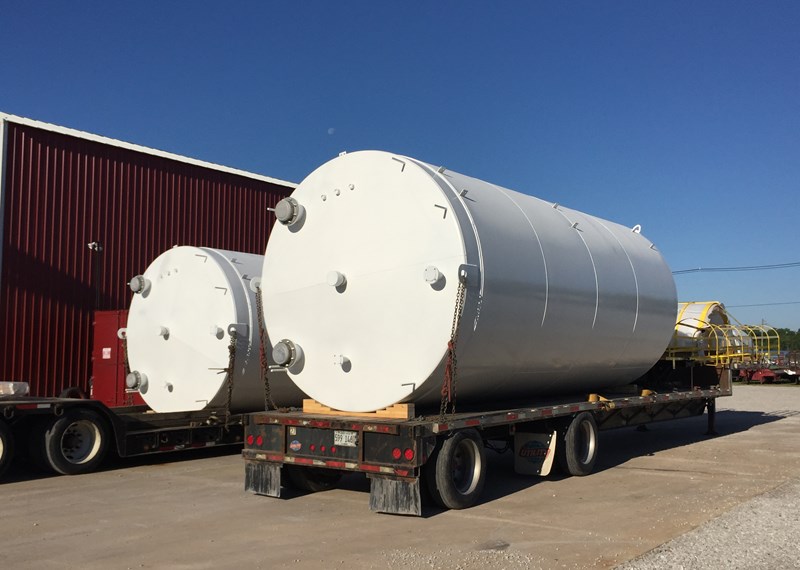

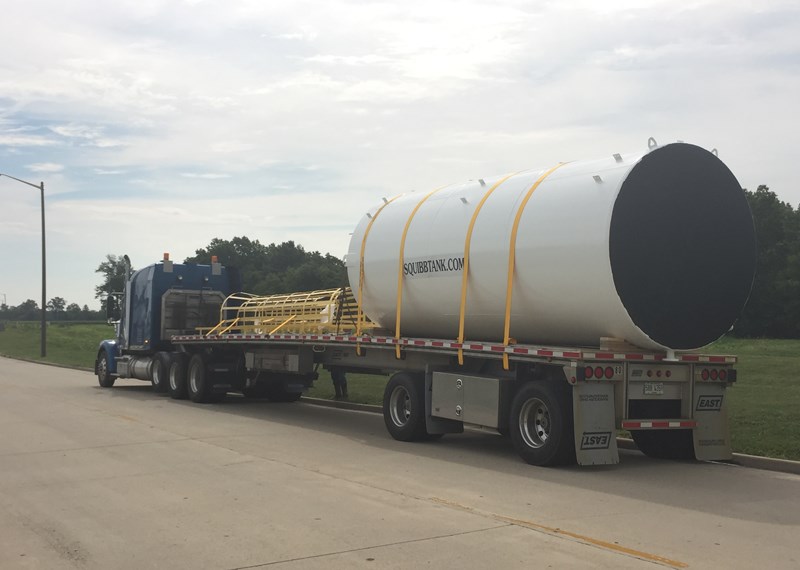

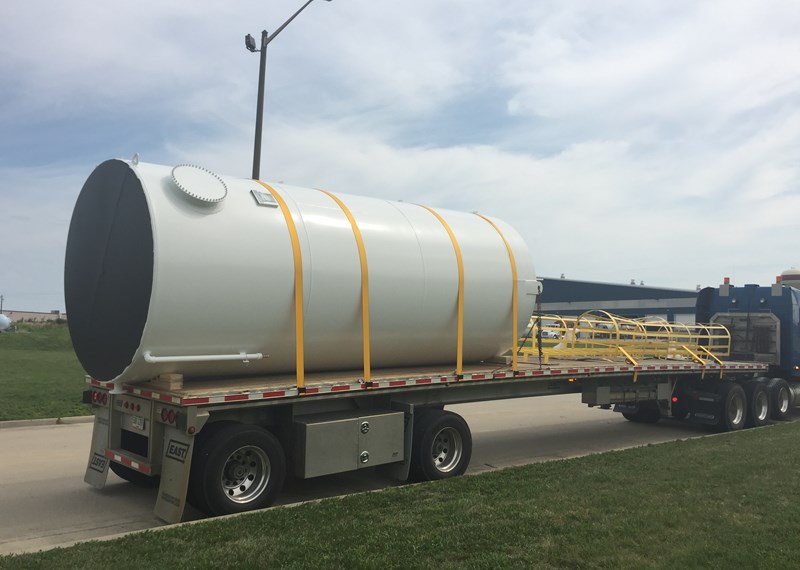

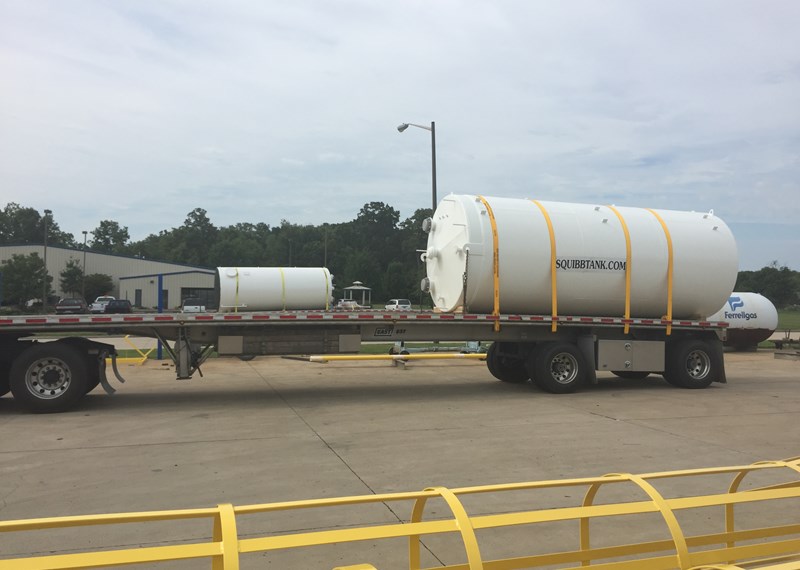

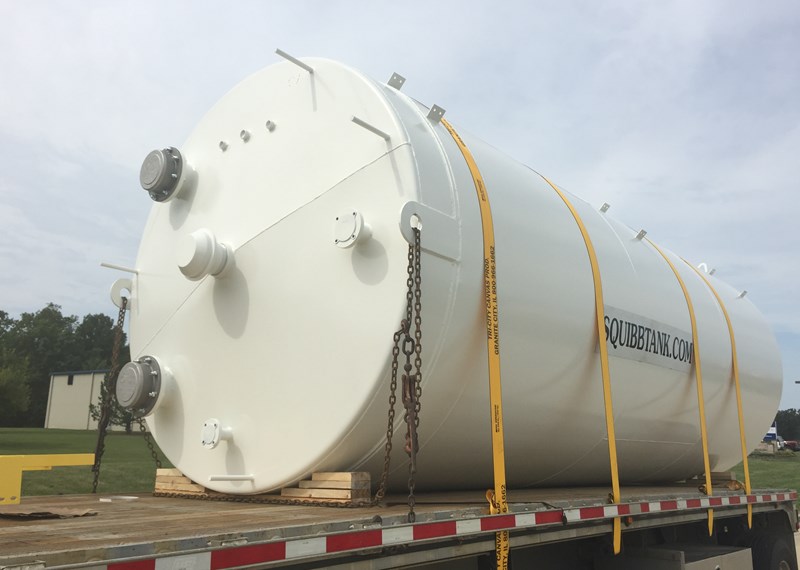

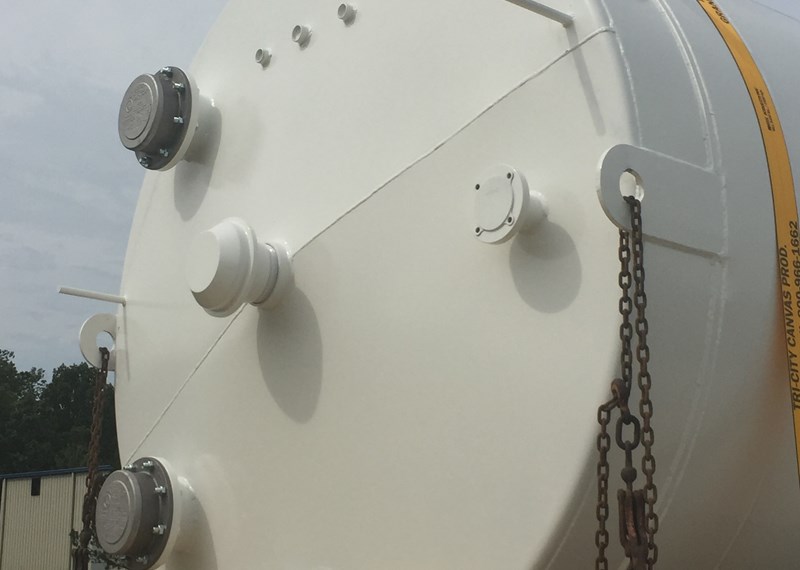

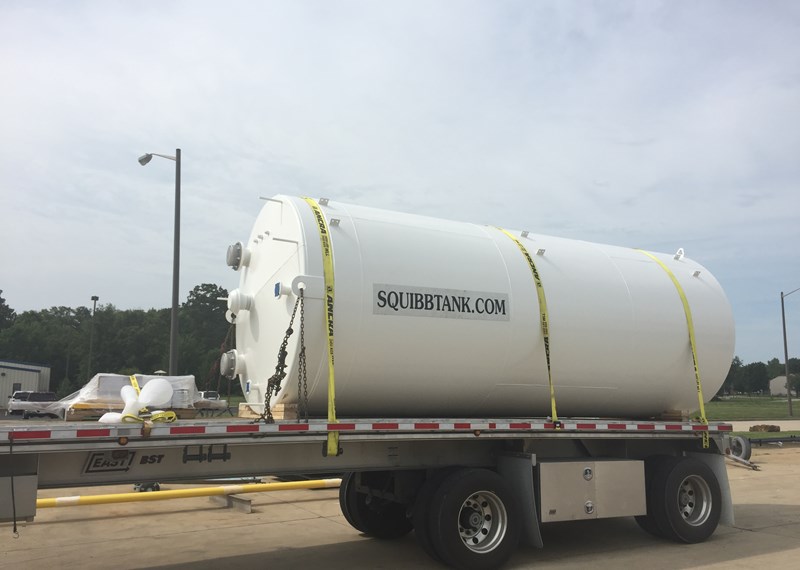

A growing trend in tank manufacturing is Double Wall Tanks.  Squibb Tank Company manufactures custom Double Wall Tanks in both Vertical & Horizontal configurations.  Recently, Squibb Tank Company shipped four (4) Vertical Double Wall Tanks to Ohio as a small component of a factory expansion.  This included project additionally fabricated tank accessory items:  OSHA compliant Safety-Caged Ladders, OSHA complaint Safety Top Guard Rails, & OSHA Safety Gates.  Our fabricated tank accessory items are welded contruction, from heavy duty materials, and complete with a Safety Yellow Powder Coat finish. Other additional tank items included Clay & Bailey Vents, Mushroom Vents, Kruger Sentry Leak Gauges, & Varec Gauge Boards.  These tanks were fabricated and labeled to UL-142 spec. and completed with a white enamel top coat.  We worked closely with the facility engineer to ensure fitting layouts, capacity, & athestitic appearance.

This custom tank project resulted with the following Tanks specs.

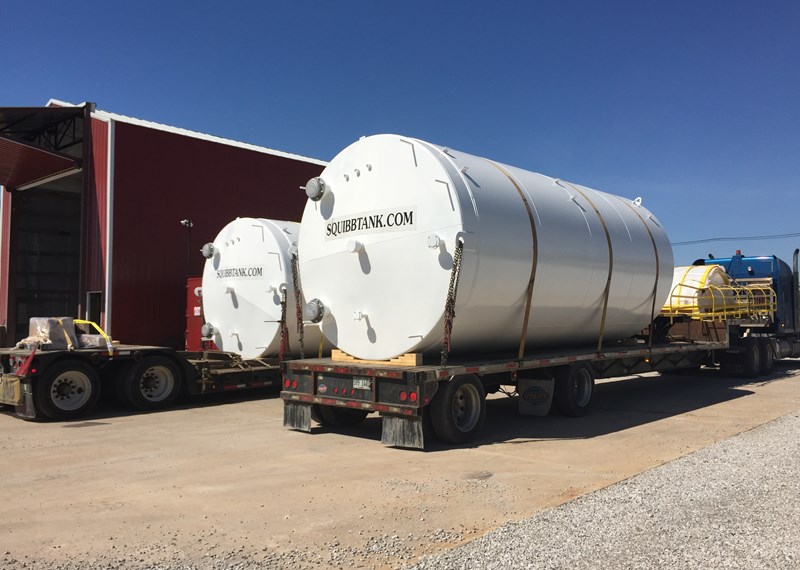

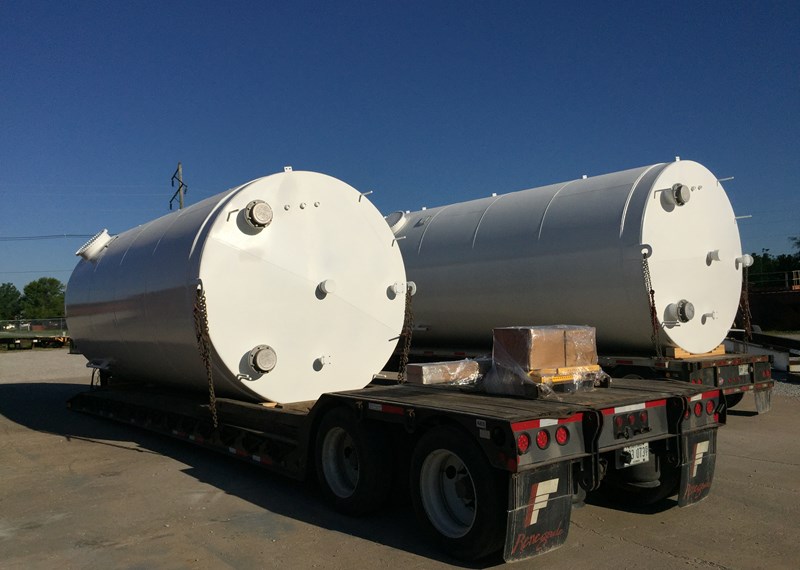

  • Two (2) UL-142 10'0" OD x 22'0" OAH 12,900-gallon capacity vertical carbon steel tank.

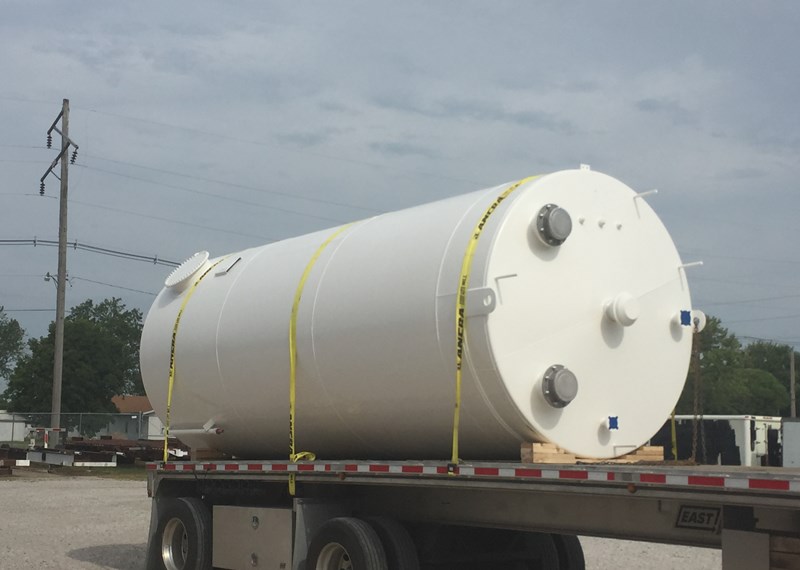

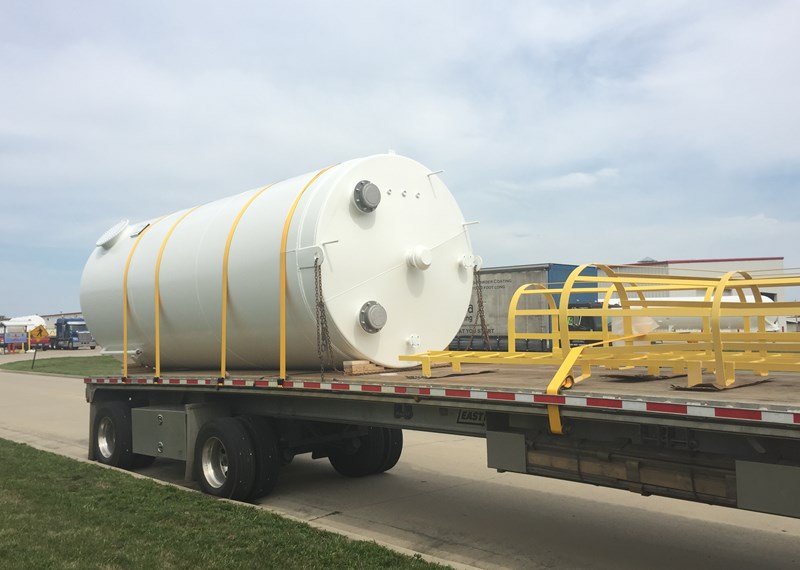

  • Two (2) UL-142 8'0" OD x 20'0" OAH 7,500-gallon capacity vertical steel tanks (Inner Tank fab. from 304 SS & Outer Tank fab. from carbon steel).
  • Four (4) OSHA compliant Heavy Duty Safety-Caged Ladders, Four (4) OSHA compliant Safety Top Guard Rails, & Four (4) OSHA compliant Safety Gates.
