Trommel Screen Assembly Rebuild

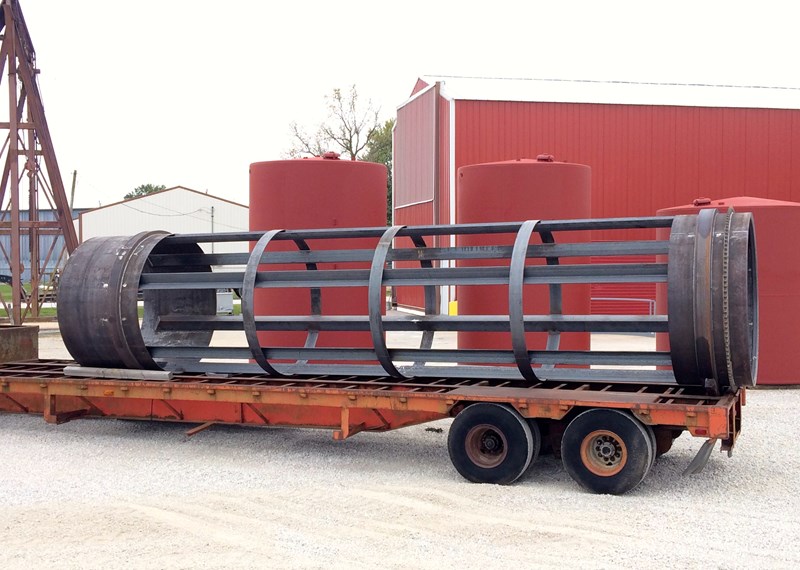

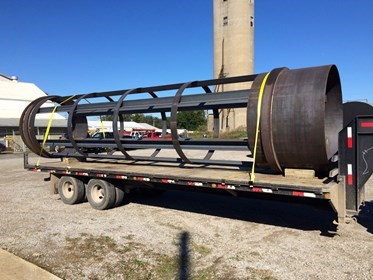

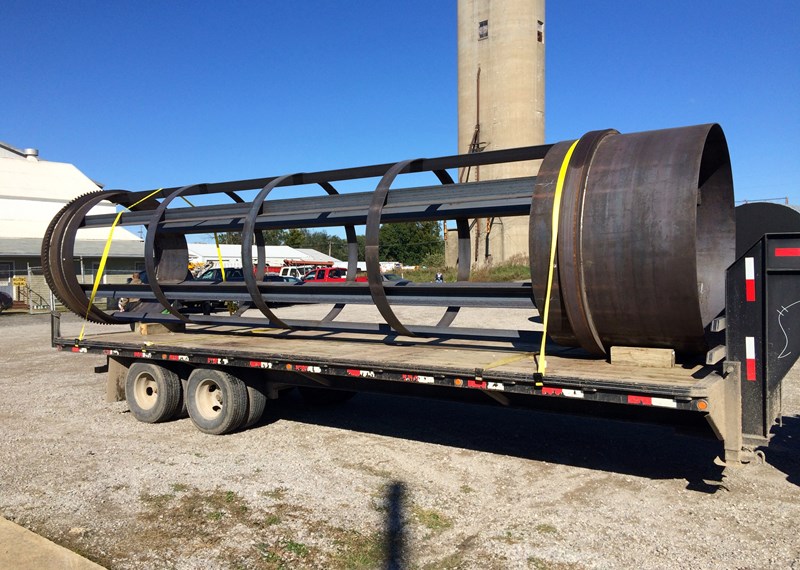

From time-to-time Squibb Tank Company has the opportunity to fabricate custom steel products unique to each customer request.  Pictured here is a rebuilt Trommel Screen Assembly.  We took measurements on location and fabricated a completely rebuilt assembly.

Trommel Screen Specs:
  • 6'0"OD x 30'0" OAL
  • (2) 3/8" Rolled End Rings
  • (3) 1/4" Rolled Support Rings
  • (5) 6"X6" Heavy Angle

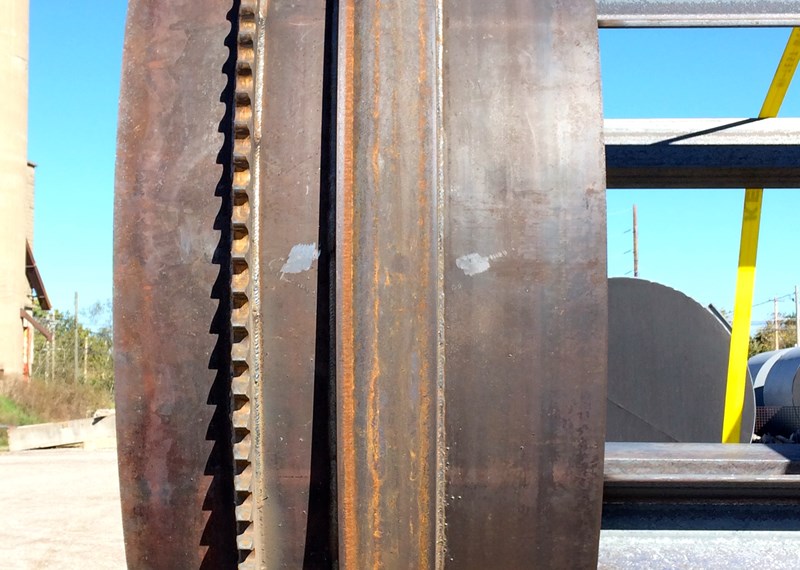

  • (1) Flame-Cut Sprocket
  • (2) 6" Rolled Channel
